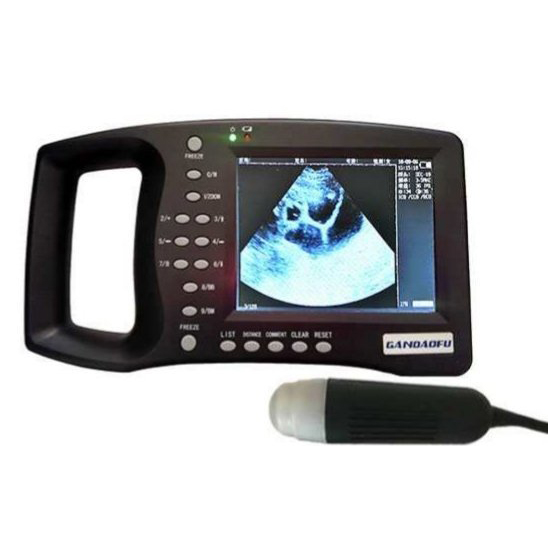

SLV 2000 Ultrasound Device

SLV 2000 Ultrasound Machine

Small portable, easy to carry, ambulance type, clear image, fetus measurement programme, eIle probe frequency conversion function, long working time, large capacity sd card (optional), 800g weight, pregnancy diagnosis on day 28 and later.
Small, portable and easy to carry.
Easy to do operation.
Clear image, can measure weight, pregnancy detection can be done.
Different inspections can be done with adjustable probe frequency.
Long-lasting working time for easily replaceable battery and power distribution.
High capacity SD Card for image storage(Optional)
Auto-colouring display

Technical Specifications

Screening System: Sector Scanning;
Probe Frequency: Probe adjustable between 3.5MHz/5MHz;
Scanning Depth: ≥180mm, 70mm/110mm/130mm/150mm/192mm adjustable;
Screen: 3.5 inch;
Image Mode: B
Screen Grey Depth: 256 levels
Colour: 8 types
Storage: 512 frames(Supports with SD Card)
Measurement: distance, Obstetrics;
Input Power: dc 14V (with External Battery)
Power Consumption: 7W (When the Probe is Working)/2.5W (When the Probe is Not Working)
Battery Operating Time: 10 Hours
Dimensions: 204mm*100mm*22mm
Weight: Device 800g, Probe 150g
Probe Connection：1

Due to the working principles of the sector probe used by this device, the engine works with a special oil. This oil is renewed according to its exhaustion. Thanks to this feature, it allows wider imaging than linear probes.

The most common malfunction in the use of ultrasound for cattle is water ingress into the part consisting of the combination of the probe head and the cable. Sector probe ultrasounds have a special plastic casing to prevent water ingress. In addition, the probe cable joints are additionally insulated by Selvet. Your devices are delivered by providing this protection process. Thus, you can use your ultrasound in a healthy way for years.
